trans-2,5-Dimethylpiperazine(2815-34-1) IR3

Product Nametrans-2,5-Dimethylpiperazine

CAS 2815-34-1

Molecular FormulaC6H14N2

Molecular Weight114.19

InChIInChI=1/C6H14N2/c1-5-3-8-6(2)4-7-5/h5-8H,3-4H2,1-2H3/t5-,6+

InChIKey NSMWYRLQHIXVAP-OLQVQODUNA-N

SmilesN1C[C@H](C)NC[C@H]1C |&1:2,6,r|

Request For Quotation

trans-2,5-Dimethylpiperazine(2815-34-1) IR3
Mass

MS-NW-1280
trans-2,5-dimethylpiperazine
C6H14N2             (Mass of molecular ion:    114)

   Source Temperature: 260 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV

      15.0       2.1
      18.0       1.5
      27.0       3.3
      28.0      16.8
      29.0       3.1
      30.0      20.5
      32.0       1.1
      39.0       3.6
      41.0      10.2
      42.0      19.9
      43.0       9.6
      44.0      26.5
      54.0       1.5
      55.0       1.1
      56.0      14.6
      57.0       8.1
      58.0     100.0
      59.0       3.7
      68.0       2.0
      70.0      13.9
      71.0       2.8
      83.0       1.1
      84.0       2.8
      85.0       1.0
      99.0      20.7
     100.0       1.3
     113.0       1.5
     114.0       7.2

90 MHz in CDCl3

trans-2,5-Dimethylpiperazine(2815-34-1) IR3

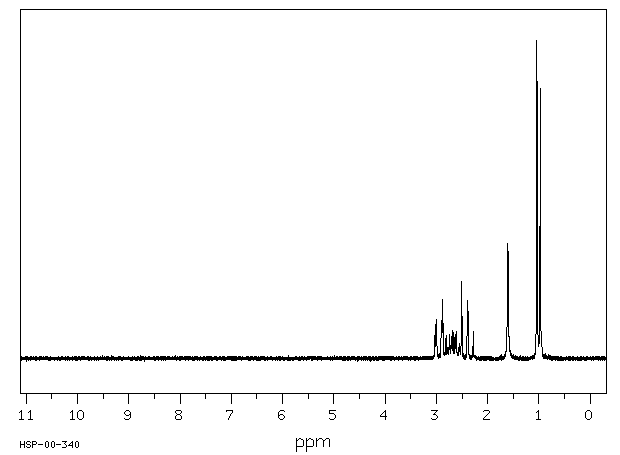

¹H NMR	89.56 MHz
C₆ H₁₄ N₂	0.05 g : 0.5 ml CDCl₃
trans-2,5-dimethylpiperazine

    Assign.     Shift(ppm)

      A             2.94
      B             2.69
      C             2.42
      D             1.61
      E             1.007

     Hz     ppm     Int.

    270.56   3.021    107
    268.31   2.996    122
    259.75   2.901    120
    257.63   2.877    186
    239.63   2.676     87
    233.69   2.610     85
    224.25   2.504    241
    214.56   2.396    150
    213.56   2.385    181
    203.88   2.277     83
    143.75   1.606    362
     92.94   1.038   1000
     87.00   0.972    850

in CDCl3
