2-Bromo-7-hydroxynaphthalene synthesis
- Product Name:2-Bromo-7-hydroxynaphthalene
- CAS Number:116230-30-9
- Molecular formula:C10H7BrO
- Molecular Weight:223.07
582-17-2
116230-30-9
The general procedure for the synthesis of 7-bromo-2-naphthol from 2,7-dihydroxynaphthalene was as follows: 1. Preparation of 2-bromo-7-methoxynaphthalene: Triphenylphosphine (89.7 g, 0.342 mol) and acetonitrile (350 mL) were added to a 1 L flask under nitrogen protection and the mixture was cooled to 10 °C. Bromine (17.6 mL, 0.342 mol) was added slowly and dropwise over 10 min. After removing the cooling bath, 2,7-dihydroxynaphthalene (50.0 g, 0.312 mol) was added and rinsed with 350 mL of acetonitrile. The resulting yellow-brown mixture was heated to reflux for 3 hours. Subsequently, the acetonitrile was removed by distillation under reduced pressure, taking about 2 hours to give an off-white solid. 2. Preparation of 7-bromo-2-naphthol: The above solid was heated to 280°C within 30 minutes to form a black liquid. The liquid was continued to be heated to 310°C within 20 minutes and maintained at this temperature for 15 minutes until gas release ceased. After the black mixture was cooled to room temperature, 34.5 g of the intermediate title compound was obtained by chromatographic separation as an off-white solid with HPLC purity of 87% (43% yield).
582-17-2
460 suppliers
$24.00/25g
116230-30-9
203 suppliers
$7.00/1g
Yield:116230-30-9 84%
Reaction Conditions:
with bromine;triphenylphosphine in acetonitrile at 0 - 250; for 1.5 h;
Steps:
2.4.1 Synthesis of 7-bromonaphthalen-2-ol (2)
A synthetic procedure was based on the literature method [12]. To a vigorously stirred mixture of triphenylphosphine (31.5g, 120mmol) in acetonitrile (50.0mL), bromine (19.2g, 120mmol) was added dropwise at 0°C. The reaction mixture was allowed to reach room temperature, and 2,7-dihydroxynaphthalene 1 (16.0g, 100mmol) was added in one portion. The mixture was heated to 70°C for 30min, after which the solvent was removed by rotary evaporation. The flask was equipped with a gas trap, and the black residue was heated to 250°C for 1h. After cooling to room temperature, the mixture was dissolved in 200mL of dichloromethane and the viscous liquid was obtained after column chromatography (silica gel, petroleum ether/dichloromethane 1:1). The crude product was purified by column chromatography (silica gel, petroleum ether/dichloromethane 3:2) to give the compound 2 (18.8g, 84.3mmol, 84%) as a beige powder. 1H NMR (400MHz, CDCl3) δ (ppm): 5.09 (s, 1H, -OH), 7.06 (d, 1H, J 2.4Hz, naphthalene-H), 7.10 (dd, 1H, J 8.8, 2.8Hz, naphthalene-H), 7.24 (dd, 1H, J 8.8, 2.0Hz, naphthalene-H), 7.63 (d, 1H, J 8.8Hz, naphthalene-H), 7.72 (d, 1H, J 8.8Hz, naphthalene-H), 7.84 (d, 1H, J 1.2Hz, naphthalene-H). 13C NMR (100MHz, CDCl3) δ (ppm): 108.7, 118.1, 120.8, 127.0, 127.3, 128.3, 129.4, 129.9, 135.7, 154.0. HR-ESI-MS m/z: [M-H]- calcd. for C10H6BrO, 220.9602; found, 220.9601.
References:
Zou, Qi;Li, Xin;Zhou, Ji;Bai, Kangkang;?gren, Hans [Dyes and Pigments,2014,vol. 107,p. 174 - 181]
5060-82-2
97 suppliers
$9.00/250mg
116230-30-9
203 suppliers
$7.00/1g
709667-62-9
0 suppliers
inquiry
116230-30-9
203 suppliers
$7.00/1g

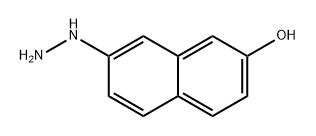

861072-57-3
