ChemicalBook
English   Japanese   Germany   Korea
返回ChemicalBook首頁>CAS數據庫列表>2146-38-5更多圖譜> 1-乙基-1-環戊烯(2146-38-5)質譜(MS)

2146-38-5

1-乙基-1-環戊烯(2146-38-5)質譜(MS)

產品名稱:1-乙基-1-環戊烯

CAS:2146-38-5

分子式:C7H12

分子量: 96.17

InChI:InChI=1S/C7H12/c1-2-7-5-3-4-6-7/h5H,2-4,6H2,1H3

InChIKey: QYYQTLLGVAPKPN-UHFFFAOYSA-N

Smiles:C1(CC)CCCC=1

  • 圖譜
    Mass

    MS-NW-4723
1-ethyl-1-cyclopentene
C7H12               (Mass of molecular ion:     96)


       Source Temperature: 210 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV


          27.0       6.0
      29.0       3.0
      38.0       1.0
      39.0      10.3
      40.0       2.2
      41.0      12.4
      42.0       1.2
      50.0       1.1
      51.0       2.2
      52.0       1.1
      53.0       6.7
      54.0       4.9
      55.0       8.4
      65.0       3.9
      66.0       6.4
      67.0     100.0
      68.0       9.1
      77.0       2.9
      79.0       5.1
      81.0      10.0
      95.0       4.2
      96.0      20.3
      97.0       1.7

90 MHz in CDCl3

  • 圖譜

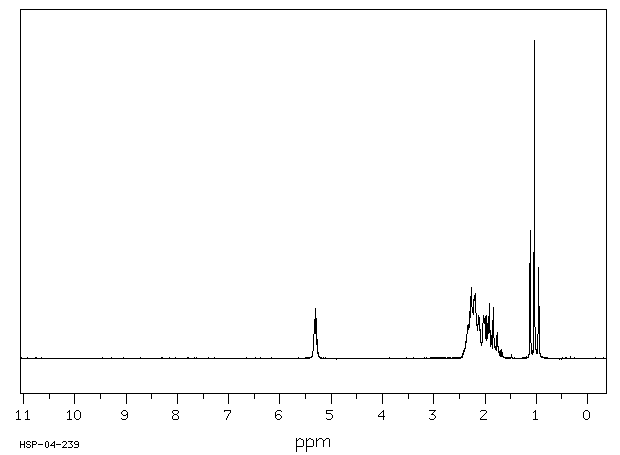

    1H NMR 89.56 MHz
    C7 H12 0.04 ml : 0.5 ml CDCl3
    1-ethyl-1-cyclopentene
    ChemicalStructure
        Assign.     Shift(ppm)

      A             5.310
      B             2.24
      C             2.07
      D             1.86
      E             1.041


         Hz     ppm     Int.


        205.13   2.291    158
    203.19   2.269    223
    202.38   2.260    223
    201.00   2.245    162
    197.81   2.209    198
    196.88   2.199    198
    195.94   2.188    205
    171.31   1.913    173
    164.50   1.837    161
    100.19   1.119    404
     93.13   1.040   1000
     92.56   1.034    474
     85.50   0.955    288
     84.81   0.947    169

in CDCl3

  • 圖譜

liquid film

  • 圖譜

×
