ChemicalBook
English   Japanese   Germany   Korea

3681-71-8

乙酸葉醇酯(3681-71-8)Raman光譜

產(chǎn)品名稱:乙酸葉醇酯

CAS:3681-71-8

分子式:C8H14O2

分子量: 142.2

InChI:InChI=1S/C8H14O2/c1-3-4-5-6-7-10-8(2)9/h4-5H,3,6-7H2,1-2H3/b5-4-

InChIKey: NPFVOOAXDOBMCE-PLNGDYQASA-N

Smiles:C(OC(=O)C)C/C=C\CC

  • 圖譜

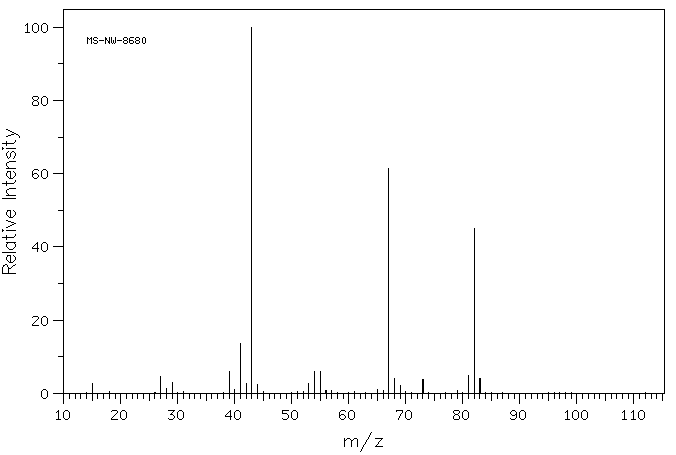

    Mass

    MS-NW-8680
cis-3-hexenyl acetate
C8H14O2             (Mass of molecular ion:    142)


       Source Temperature: 260 °C
   Sample Temperature: 140 °C
   Reservoir, 75 eV


          15.0       2.8
      27.0       4.5
      28.0       1.3
      29.0       3.0
      39.0       6.1
      40.0       1.1
      41.0      13.6
      42.0       2.6
      43.0     100.0
      44.0       2.4
      53.0       2.7
      54.0       5.9
      55.0       5.9
      65.0       1.0
      67.0      61.4
      68.0       4.0
      69.0       2.2
      73.0       3.7
      81.0       5.0
      82.0      45.0
      83.0       4.0

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C8 H14 O2 0.04 ml : 0.5 ml CDCl3
    cis-3-hexenyl acetate

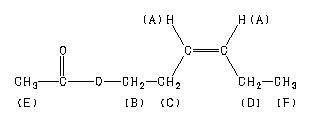

    ChemicalStructure
        Assign.     Shift(ppm)

      A          5.70 to 5.14
      B             4.061
      C             2.376
      D             2.06
      E             2.044
      F             0.978


         Hz     ppm     Int.


        496.56   5.545     26
    489.44   5.465     64
    486.25   5.430     41
    484.88   5.415     50
    483.56   5.400     41
    480.38   5.364     62
    370.88   4.142    104
    363.94   4.064    224
    357.06   3.987    122
    222.56   2.486     35
    216.06   2.413     90
    209.31   2.338     88
    202.63   2.263     34
    192.13   2.146     49
    183.06   2.044   1000
    178.06   1.989     54
    177.56   1.983     54
     94.31   1.054    166
     87.06   0.973    324
     79.38   0.887    118

in CDCl3

  • 圖譜

CCl4 solution

  • 圖譜

liquid film

  • 圖譜

4880 A,200 M,liquid

  • 圖譜

×
