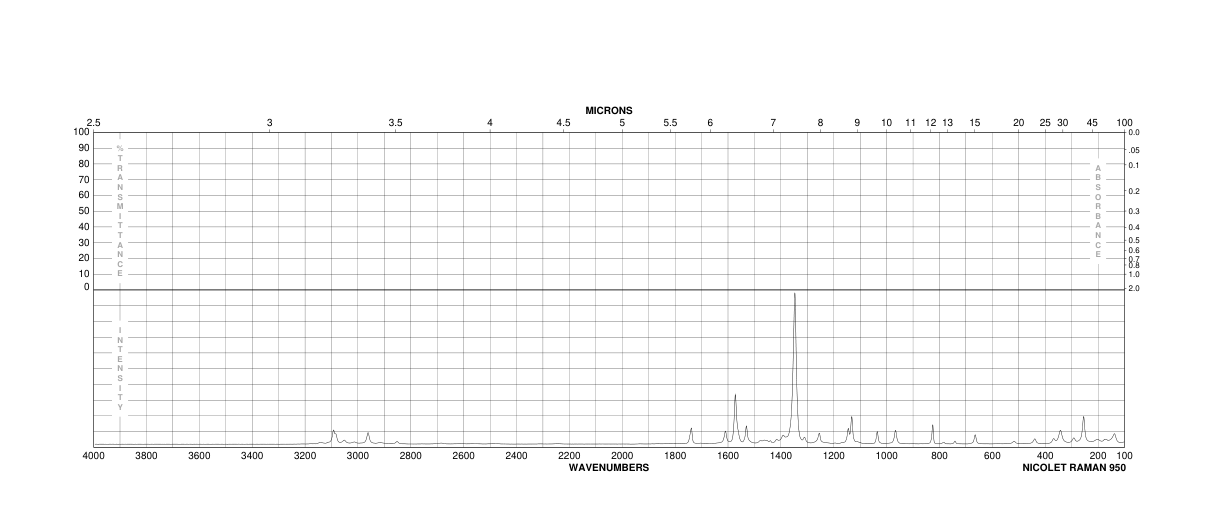

2-溴-5-硝基苯甲酸甲酯(6942-36-5)Raman光譜
分子式:C8H6BrNO4
分子量: 260.04
InChI:InChI=1S/C8H6BrNO4/c1-14-8(11)6-4-5(10(12)13)2-3-7(6)9/h2-4H,1H3
InChIKey: VSEYYEKRZNRECT-UHFFFAOYSA-N
Smiles:C(OC)(=O)C1=CC([N+]([O-])=O)=CC=C1Br
-
Mass
MS-IW-1890
methyl 2-bromo-5-nitrobenzoate
C8H6BrNO4 (Mass of molecular ion: 259)
Source Temperature: 220 °C
Sample Temperature: 160 °C
Reservoir, 75 eV
15.0 2.1
29.0 1.0
30.0 1.7
37.0 1.4
38.0 1.2
49.0 1.0
50.0 2.9
51.0 1.1
53.0 1.1
59.0 4.4
61.0 1.2
62.0 2.2
63.0 6.2
64.0 1.0
73.0 3.5
74.0 20.5
75.0 35.5
76.0 5.2
77.0 1.7
78.0 1.6
89.0 1.3
91.0 1.3
103.0 3.1
109.0 1.3
110.0 4.7
111.0 1.0
112.0 1.5
119.0 2.0
126.0 1.6
128.0 1.3
137.0 1.1
138.0 9.3
139.0 1.2
140.0 3.0
150.0 2.8
153.0 5.4
154.0 12.6
155.0 6.3
156.0 11.2
157.0 1.9
169.0 1.5
170.0 5.5
171.0 1.2
172.0 5.1
181.0 3.1
182.0 23.5
183.0 5.0
184.0 57.1
185.0 6.4
186.0 12.3
187.0 1.7
197.0 4.6
198.0 7.0
199.0 5.5
200.0 7.2
201.0 1.3
213.0 3.9
214.0 2.2
215.0 13.7
216.0 2.7
217.0 3.6
228.0 100.0
229.0 12.0
230.0 98.8
231.0 11.8
232.0 1.2
259.0 36.3
260.0 3.6
261.0 36.1
262.0 3.3
